Straight Edge 3m

£25.00

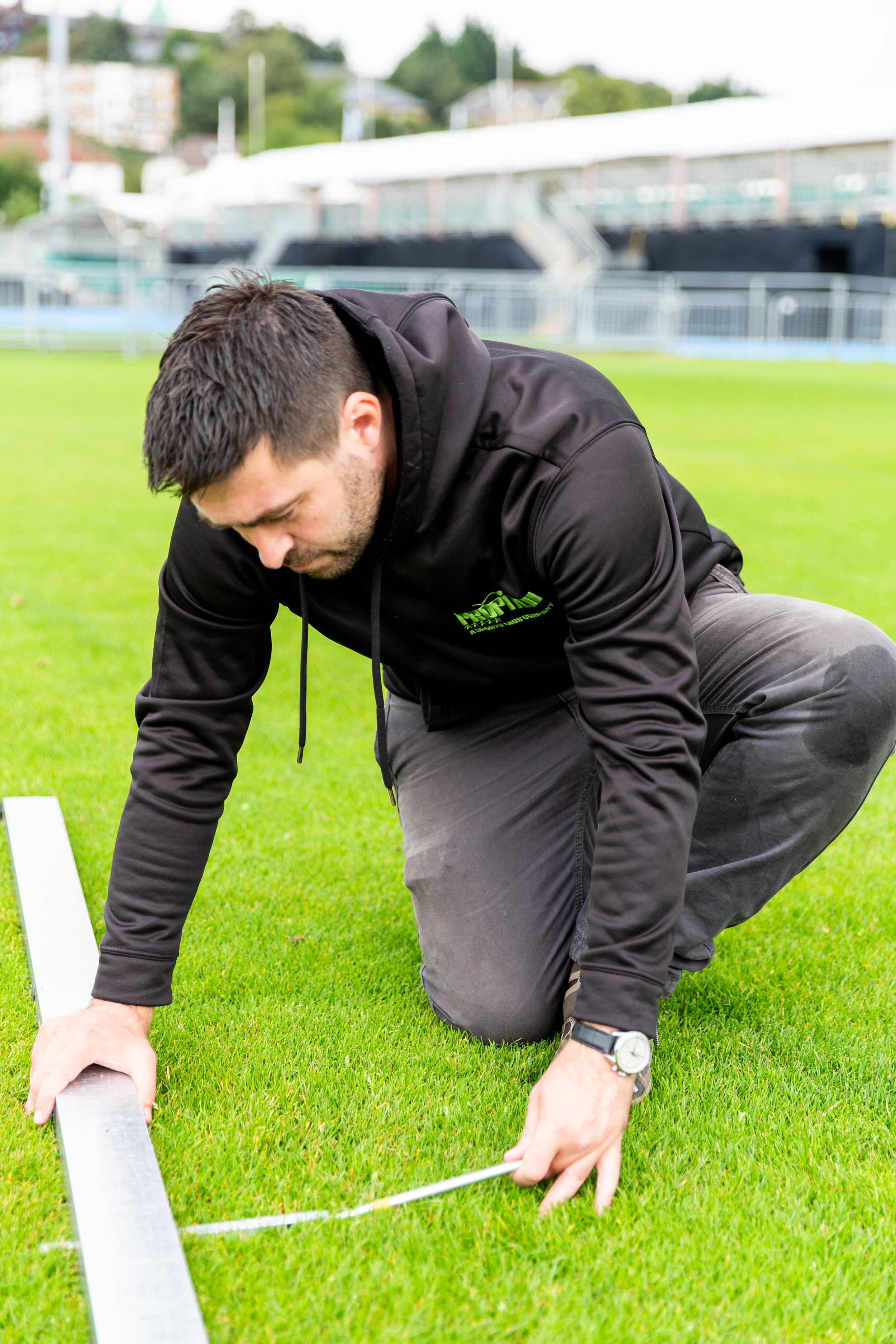

A surface assessment tool used to measure the planarity of a surface or constructed base, made up of a precisely machined 3-meter beam, a drag rope and graduated measuring wedge. To use the Straight Edge the operator places the assembled unit flat on the test surface and drags it along the length of the surface. When gaps appear below the beam, the size of the gap is measured using the graduated wedge.

Quantity:
Add To Cart

A surface assessment tool used to measure the planarity of a surface or constructed base, made up of a precisely machined 3-meter beam, a drag rope and graduated measuring wedge. To use the Straight Edge the operator places the assembled unit flat on the test surface and drags it along the length of the surface. When gaps appear below the beam, the size of the gap is measured using the graduated wedge.

A surface assessment tool used to measure the planarity of a surface or constructed base, made up of a precisely machined 3-meter beam, a drag rope and graduated measuring wedge. To use the Straight Edge the operator places the assembled unit flat on the test surface and drags it along the length of the surface. When gaps appear below the beam, the size of the gap is measured using the graduated wedge.



Product Features

Collapsible 3 meter beam made up of three 1 meter sections

Simple assembly and disassembly for transportation

What’s Included?

1 x 3 meter straight edge beam

1 x Drag Rope

1 x Graduated metric measuring wedge

Applications

Planarity assessment of artificial, natural or hybrid sports surfaces

Assessment of base layers during surface construction

Standards

EN 14904

EN15330

ITF CS 02/02

IAAF Specification (2008)
