Ball Rebound

£1,800.00

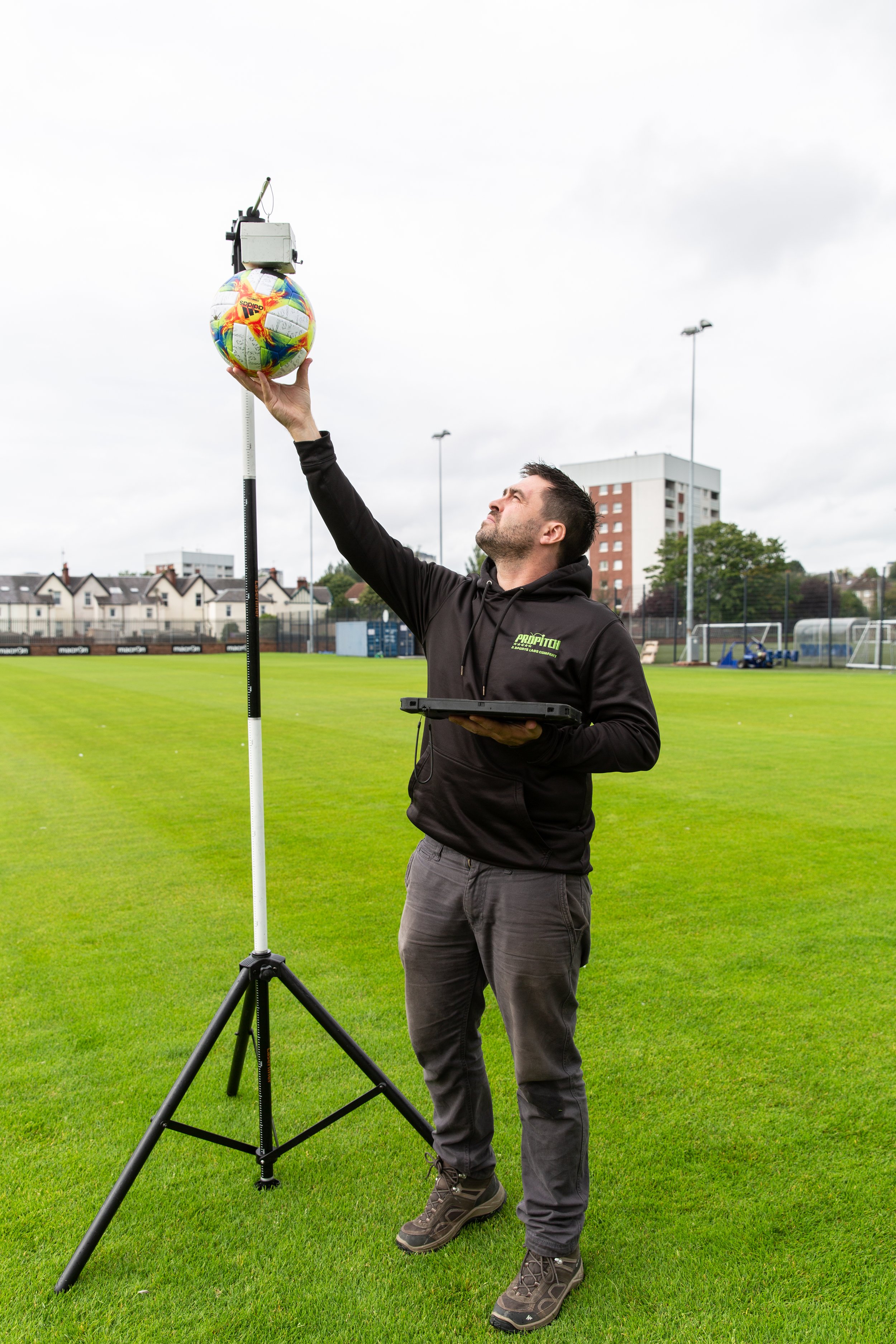

The STE Ball Rebound is used to analyse the ball bounce characteristics of sports surfaces. The device is operated via a wireless tablet PC which controls release of the ball from a magnet set at the desired drop height. Ball rebound height is calculated using the audio response of the ball’s first and second bounce on the surface.

Add To Cart

Ball Rebound

£1,800.00

The STE Ball Rebound is used to analyse the ball bounce characteristics of sports surfaces. The device is operated via a wireless tablet PC which controls release of the ball from a magnet set at the desired drop height. Ball rebound height is calculated using the audio response of the ball’s first and second bounce on the surface.

Add To Cart


Product Features

Tablet PC with testing software included.

Wireless ball drop control via electromagnet.

Lightweight design for transportation.

Simple adjustment of ball drop height.

What’s Included

1 x Tripod and dimensioned staff

1 x Tablet PC with staff mount attachment

1 x Ball rebound software downloaded on tablet PC

1 x Electromagnet and control box

Applications

Assessment of ball/surface interaction of various sports balls on surfaces which a ball is used. Suitable for use for Football, Tennis, Hockey and Basketball.

Standards

EN 12235

EN 14904

EN 15330

FIFA 01

ASTM F2117

DIN 18032-2
